  • 產品介紹

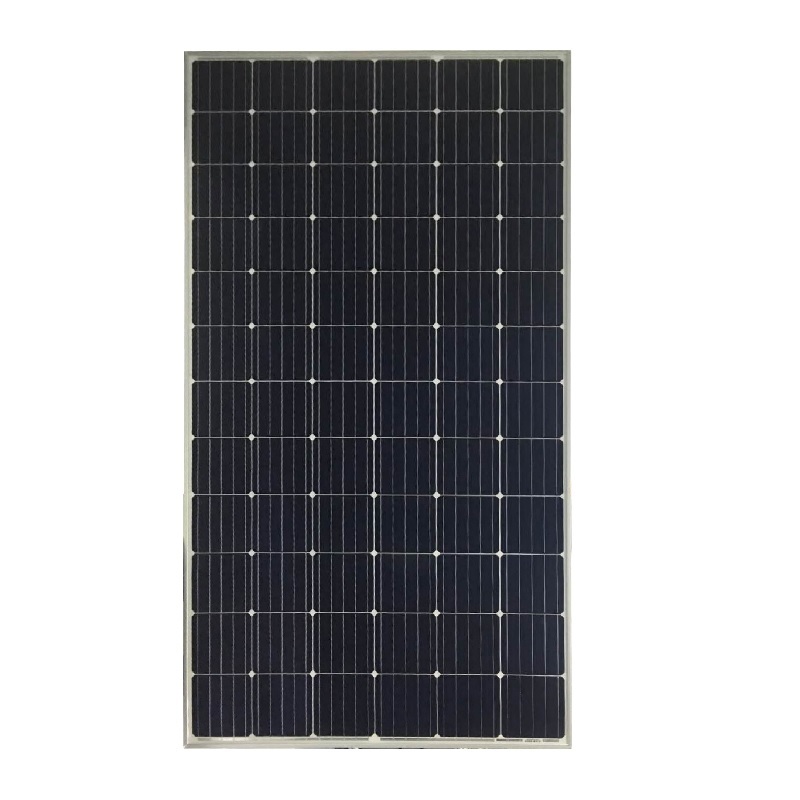

    72 (6x12) Cells

    315W-330W 單晶矽太陽能模組

    Mechanical characteristics
    • Number of Cell: 72 cells
    • Dimension: 1956x992x40 mm
    • Weight: 23.0 Kgs
    • Junction Box: IP65/IP67 rated (3 bypass diodes)
    • Connectors: MC4 compatible
    • Mechanical load test: 5400Pa

    N6M315W-330W (331 KB)
    Electrical Characteristics
    Type N6M315W72P N6M320W72P N6M325W72P N6M330W72P
    Maximum Power (Pmax) 315W 320W 325W 330W
    Open Circuit Voltage (Voc) 43.8V 44.0V 44.0V 44.2V
    Short Circuit Current (Isc) 9.27A 9.37A 9.52A 9.62A
    Voltage at Maximum Power (Vmpp) 35.9V 36.1V 36.1V 36.3V
    Current at Maximum Power (Impp) 8.77A 8.86A 9.00A 9.09A
    Module Efficiency 16.23% 16.48% 16.74% 17.00%
    Power Tolerance 0/+5W
    Operating Module Temperature ?-40℃ to +85℃
    Maximum System Voltage 1500VDC (IEC) / 600VDC (UL)
    Maximum Series Fuse Rating 15A
    Temperature Characteristics Nominal Operating Cell Temperature (NOCT) 45+/-2℃
    Temperature Coefficient of Pmax -0.42%/℃
    Temperature Coefficient of Voc -0.32%/℃
    Temperature Coefficient of Isc 0.05%/℃
