  • 產品介紹

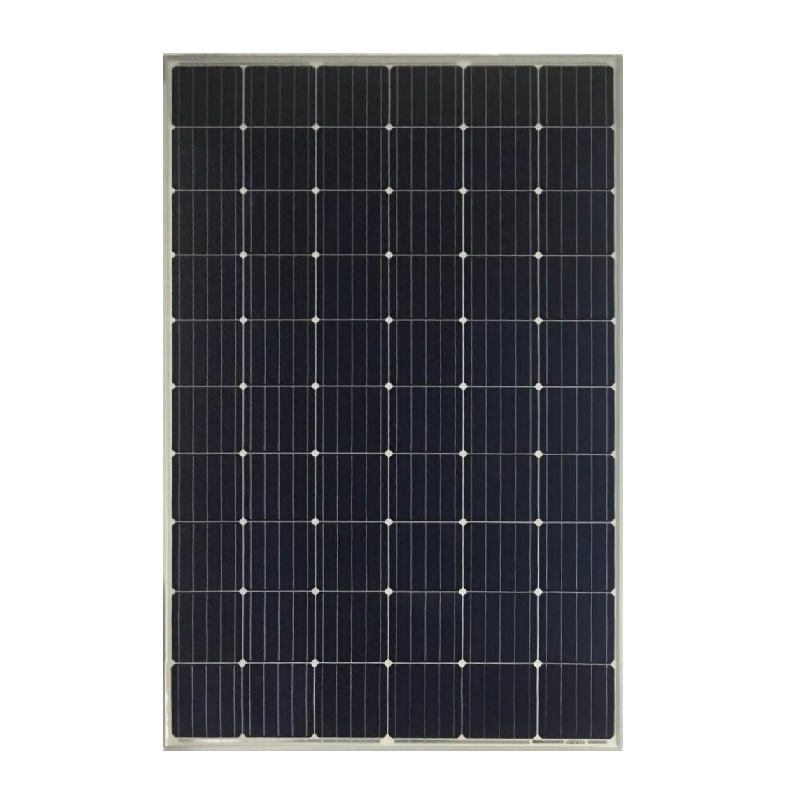

    60 (6X10) Cells

    270W-290W 單晶矽太陽能模組

    Mechanical characteristics
    • Number of Cell: 60 cells
    • Dimension: 1640x992x40 mm
    • Weight: 20.0 Kgs
    • Junction Box: IP65/IP67 rated (3 bypass diodes)
    • Connectors: MC4 compatible
    • Mechanical load test: 5400Pa

    N6M270W-290W (267 KB)
    Electrical Characteristics
    Type N6M270W60P N6M275W60P N6M280W60P N6M285W60P N6M290W60P
    Maximum Power (Pmax) 270W 275W 280W 285W 290W
    Open Circuit Voltage (Voc) 38.2V 38.3V 38.5V 38.7V 38.9V
    Short Circuit Current (Isc) 9.17A 9.25A 9.37A 9.49A 9.60A
    Voltage at Maximum Power (Vmpp) 31.0V 31.3V 31.5V 31.7V 31.9V
    Current at Maximum Power (Impp) 8.71A 8.79A 8.89A 8.99A 9.09A
    Module Efficiency 16.60% 16.90% 17.20% 17.52% 17.83%
    Power Tolerance 0/+5W
    Operating Module Temperature ?-40℃ to +85℃
    Maximum System Voltage 1500VDC (IEC) / 600VDC (UL)
    Maximum Series Fuse Rating 15A
    Temperature Characteristics Nominal Operating Cell Temperature (NOCT) 45+/-2℃
    Temperature Coefficient of Pmax -0.42%/℃
    Temperature Coefficient of Voc -0.32%/℃
    Temperature Coefficient of Isc 0.05%/℃
