    產品介紹

    多晶矽太陽能模組

    60 (6X10) Cells

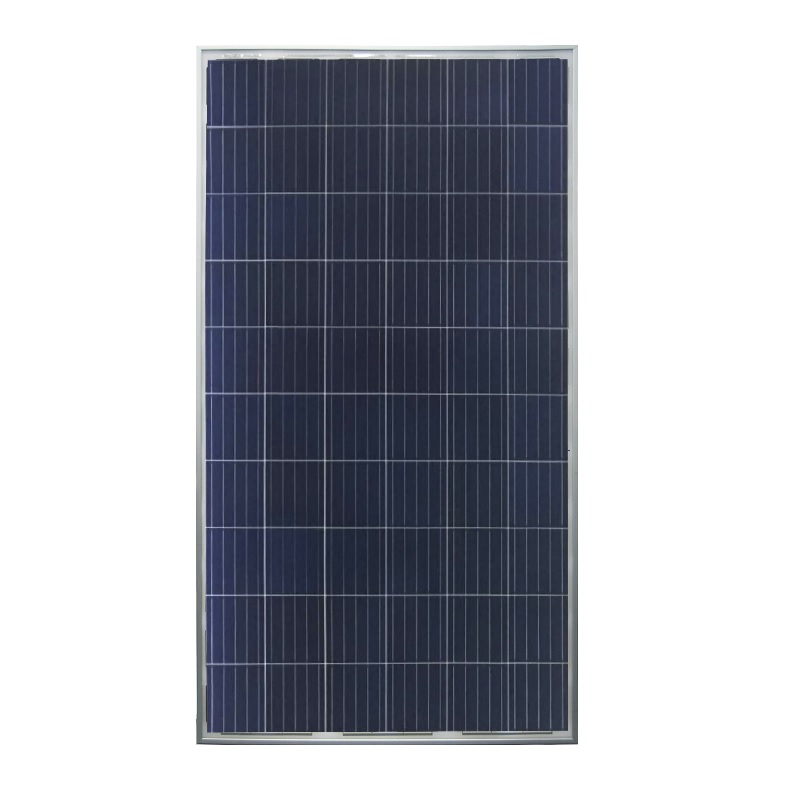

    255W-275W 多晶矽太陽能模組

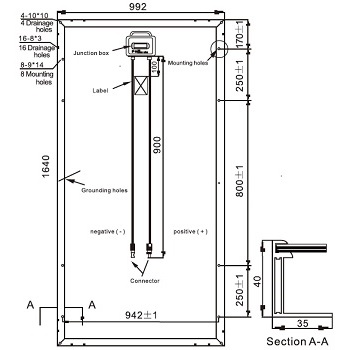

    Mechanical characteristics
    • Number of Cell: 60 cells
    • Dimension: 1640x992x40 mm
    • Weight: 20.0 Kgs
    • Junction Box: IP65/IP67 rated (3 bypass diodes)
    • Connectors: MC4 compatible
    • Mechanical load test: 5400Pa

    瀏覽更多內容
    N6P255W-275W (291 KB)
    Electrical Characteristics
    Type N6P255W60P N6P260W60P N6P265W60P N6P270W60P N6P275W60P
    Maximum Power (Pmax) 255W 260W 265W 270W 275W
    Open Circuit Voltage (Voc) 37.3V 37.4V 37.5V 38.2V 38.2V
    Short Circuit Current (Isc) 9.00A 9.11A 9.21A 9.30A 9.35A
    Voltage at Maximum Power (Vmpp) 30.2V 30.4V 30.5V 30.9V 30.9V
    Current at Maximum Power (Impp) 8.43A 8.55A 8.68A 8.74A 8.9A
    Module Efficiency 15.67% 15.98% 16.29% 16.42% 16.90%
    Power Tolerance 0/+5W
    Operating Module Temperature ?-40℃ to +85℃
    Maximum System Voltage 1500VDC (IEC) / 600VDC (UL)
    Maximum Series Fuse Rating 15A
    Temperature Characteristics Nominal Operating Cell Temperature? 45+/-2℃
    Temperature Coefficient of Pmax -0.42%/℃
    Temperature Coefficient of Voc -0.32%/℃
    Temperature Coefficient of Isc 0.05%/℃
